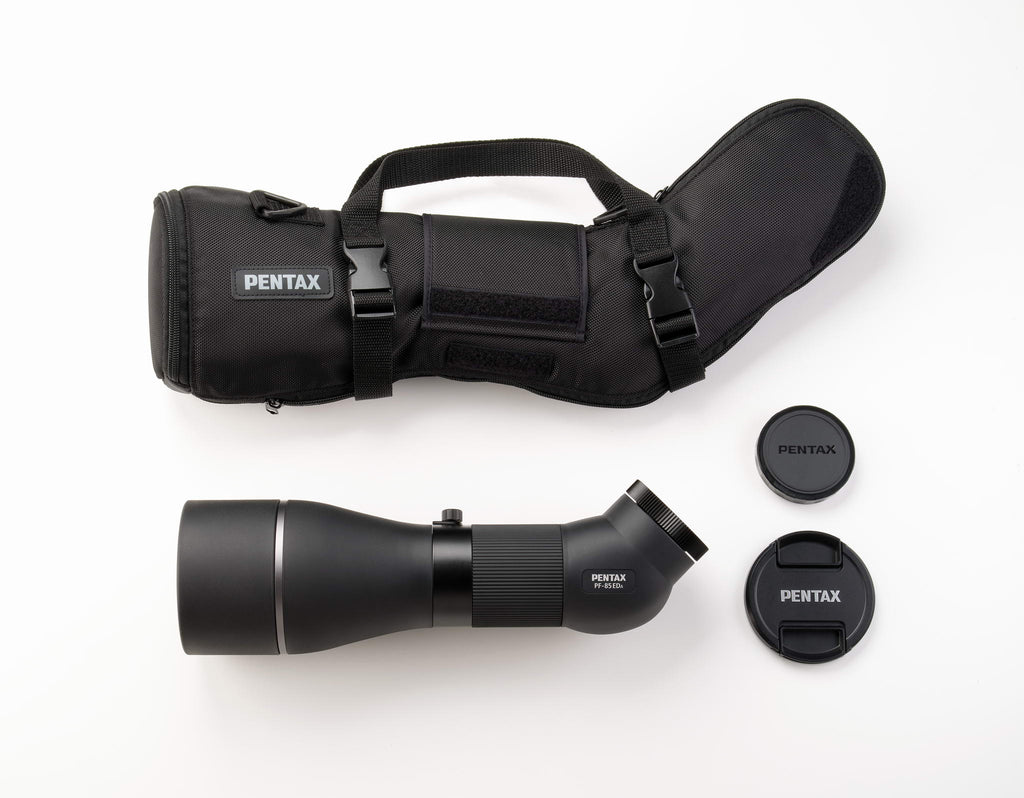

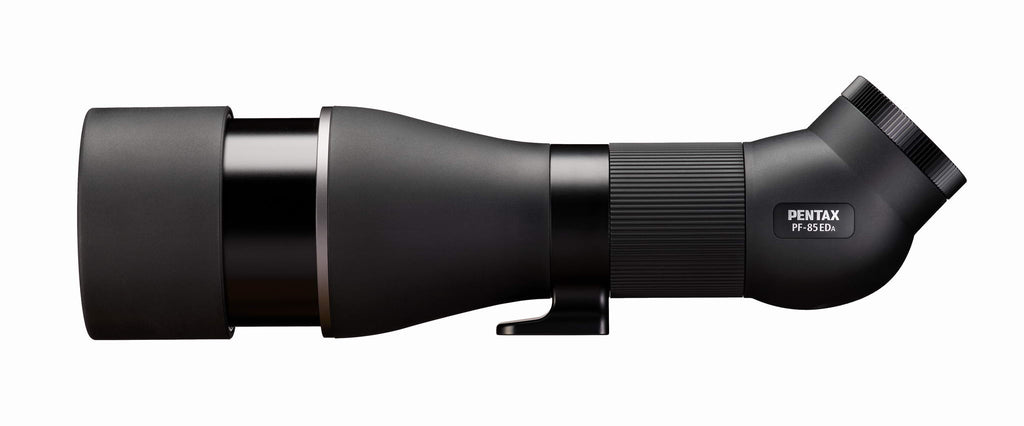

Pentax PF-85EDA Spotting Scope and Zoom Eyepiece Kit
Bright, clear field of view
The PENTAX PF-85EDA features ED (Extra-low Dispersion) glass optical elements to effectively minimize chromatic aberrations, and the latest multi-layer coating process to drastically reduce reflectance.
Full multi-coating
With the combination of a full multi-coating process applied to all optical elements and a phase coating process applied to the roof prism, this spotting scope delivers a clear, high-contrast field of view for high-quality observations.
Compact body for excellent portability
Despite its large, 85mm-diameter objective lens, this spotting scope is designed to be compact and highly portable, thanks to the incorporation of the latest optical design featuring a roof prism.
Compatibility with a range of eyepieces
The eyepiece mount features an American-standard 31.7mm (1.25-inch) sleeve to accept a range of eyepieces, including the XF series specifically designed for PENTAX spotting scopes, and the XW series perfect for astronomical observation.
Slanted-barrel design
The eyepiece section is slanted upward at a 45-degree angle, allowing the user to easily adjust the eye level and observe subjects while standing or sitting in a natural, relaxed posture.
Waterproof construction* for use in a rain
By inserting a dust-proof glass element in the eyepiece mount, the spotting scope is designed to be airtight for outstanding waterproof performance (equivalent to JIS Class 7; with water resistance to a depth of one meter*) for dependable use even in the rain or mist. * This model cannot be used underwater.
Nitrogen-filled body for a clear field of view without fogging
The interior of this spotting scope is filled with nitrogen gas to prevent fogging caused by sudden temperature changes, assuring a clear field of view even in demanding weather conditions.
Kit includes smc PENTAX Zoom eyepiece 8-24mm
The PENTAX PF-85EDA Zoom Eyepiece Kit includes smc PENTAX Zoom Eyepiece 8-24mm. This eyepiece features a magnification range of 20-60X and an eye relief of 20mm.
Technical Specifications:
|
Model |
PF-85EDA |
|
Type |
Roof prism (45° tilted) |
|
Lens Construction |
5 elements in 4 groups, ED glass elements with 85mm effective aperture |
|
Eyepiece Ring Diameter |
31.7 mm (1.25 in.) |
|
Focus Range |
About 5 m to infinity |
|
Eyepiece Ring |
Collet type |
|
Color |
Black |
|
Dimensions |
approx. 347 x 117 x 102 mm / approx. 13.7 x 4.6 x 4.0 in. |
|
Weight |
approx. 1,600 g / approx. 56.5 oz. |
|
Waterproof Rating |
1 m depth of water, Nitrogen filled |
|
Accessories |
Objective lens cap, Eye lens cap, Case |
|
|
Zoom |
|
|
|
8.0-24.0 |
|
|
Magnification |
20x |
60x |
|
Real field of view |
1.9° |
1.0° |
|
Apparent Field of View |
38° |
60° |
|
Field of view at 1000m |
33ｍ |
17ｍ |
|
Field of view at 1000yard |
99ft |
51ft |
|
Exit pupil aperture |
4.3mm |
1.4mm |
|
Eye relief |
18mm |
22mm |
|
Distance from eyepiece rubber in parentheses. |
5mm |
9mm |
|
Attachment diameter |
31.7mm |
|
|
Relative brightness |
18.1 |
2.0 |
