Concept

360° for everyone.
Standard model that enables you to easily enjoy high performance.

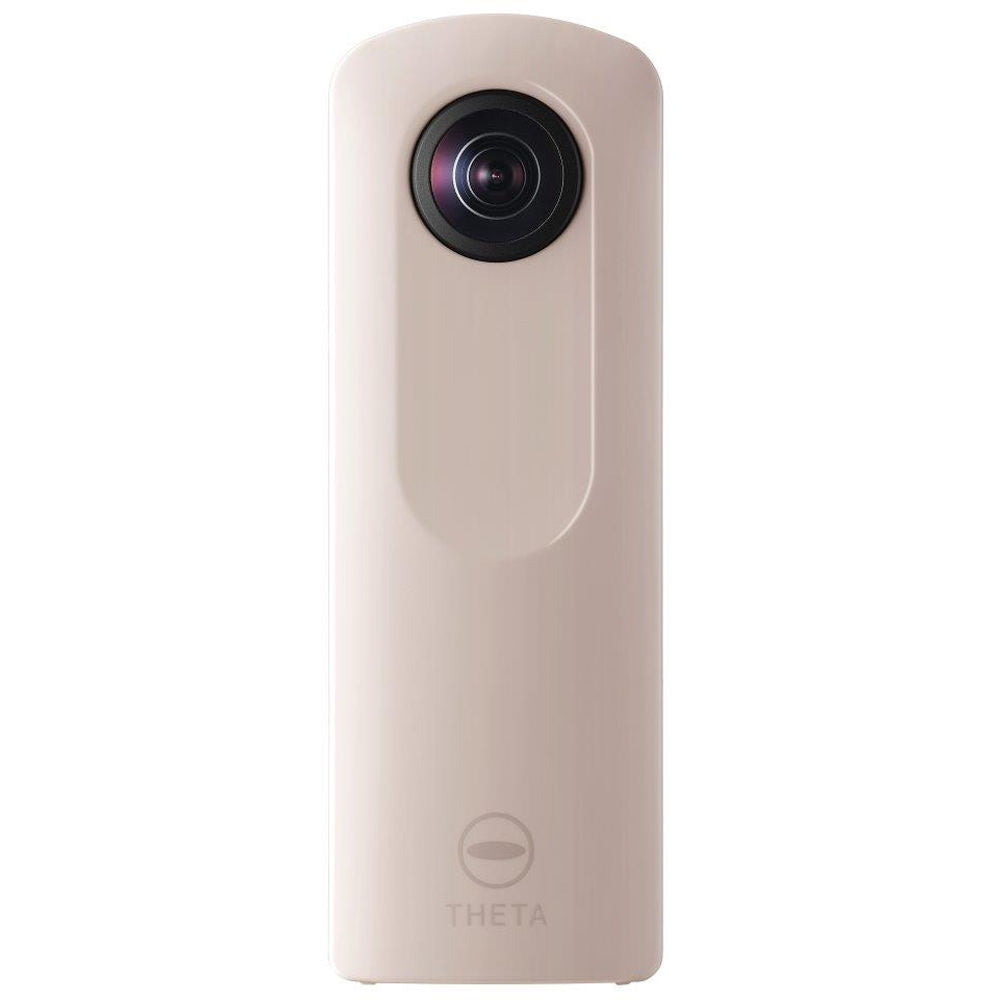

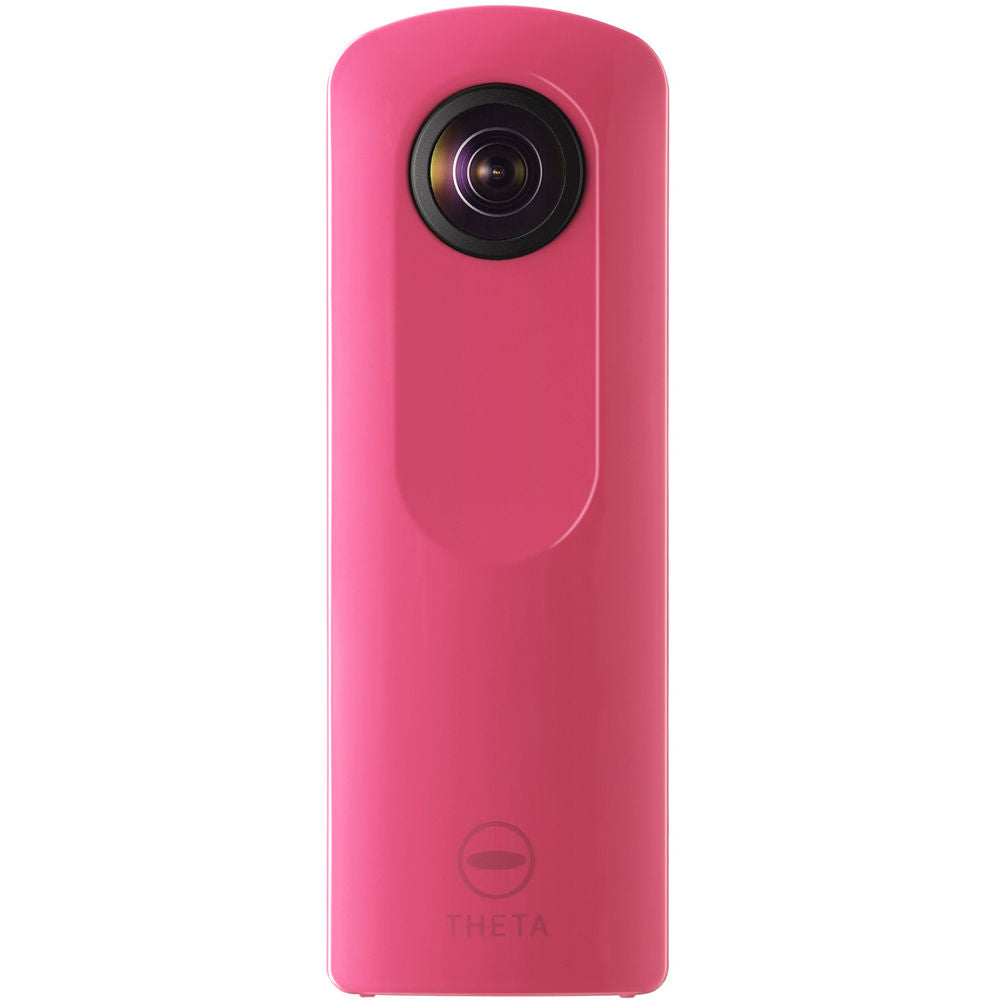

A choice of 4 elegant colors.

Feature

Striving for ease-of-use with amazing high performance.

Records natural 360° still images and videos with high resolution and highly precise stitch image processing.

Adapt to shooting scenarios and take beautiful images with ease. Features Preset (Face, Night View, and Lens-by-Lens Exposure modes).*Shooting at night must be done with a tripod attached.

Produces incredibly realistic spherical video by shooting video in 4K (3840 x 1920, 29.97fps).*Transfer is not possible on iOS devices that are not compatible with 4K video. Click here for details (FAQ link)

High-speed wireless transfer. Rapid wireless transfer of images and videos.

Never miss a shot with the quick lens response that enables shooting in around 1.5 seconds after turning the power on.

Design

Enable everyone to easily enjoy 360°.

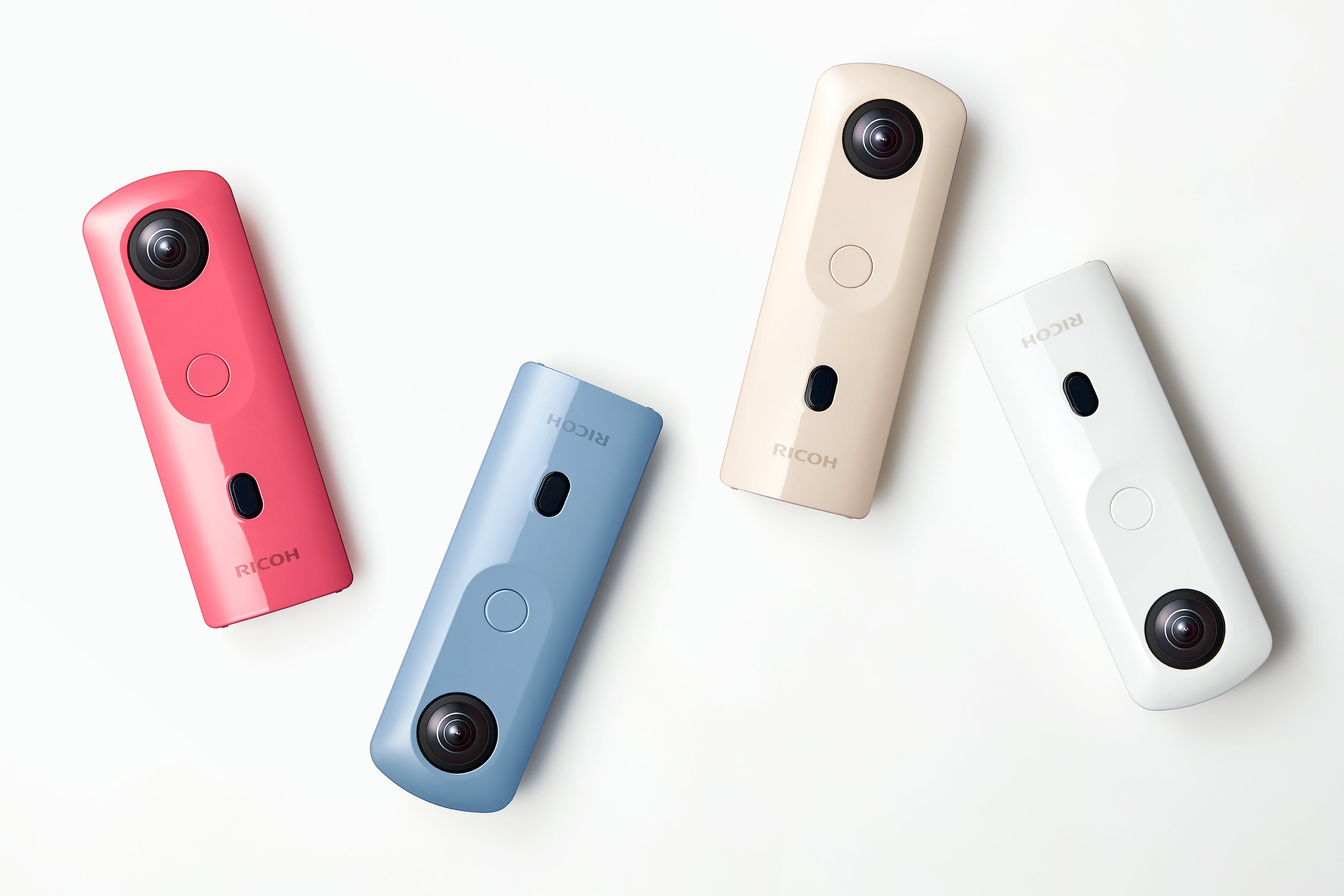

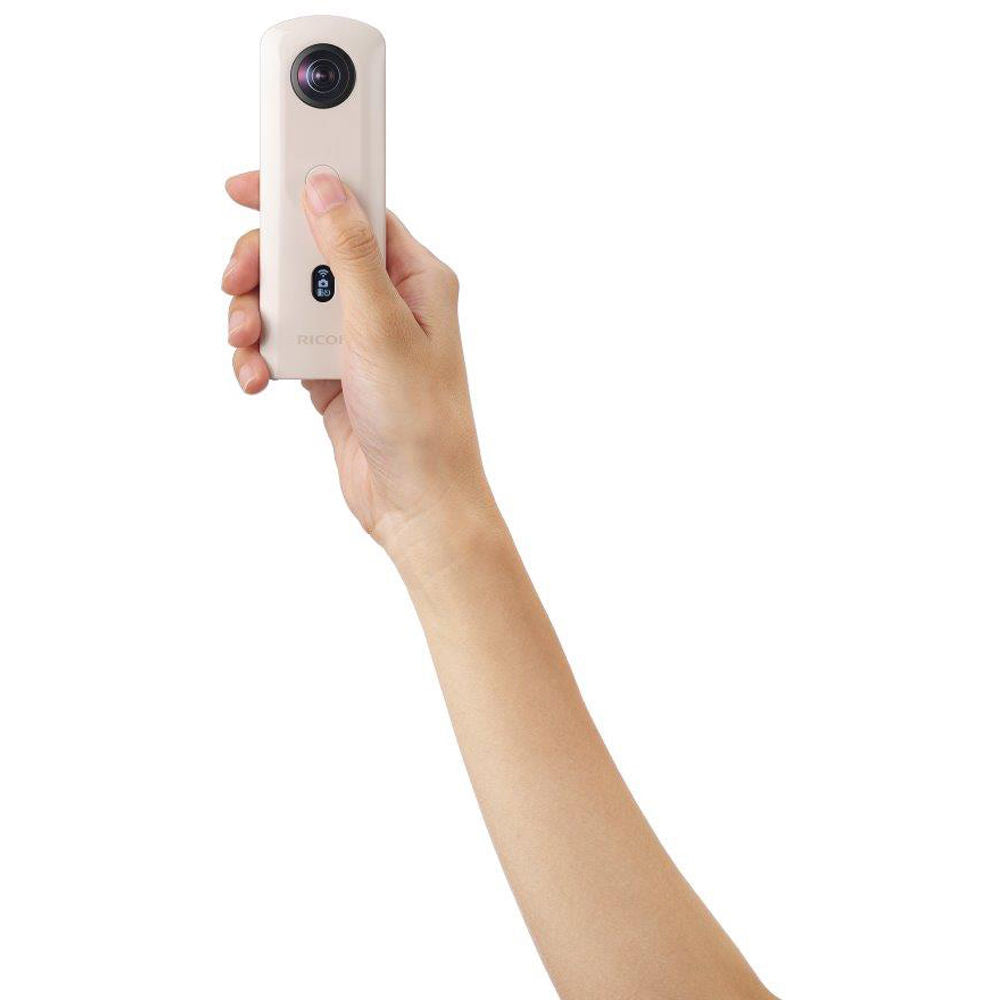

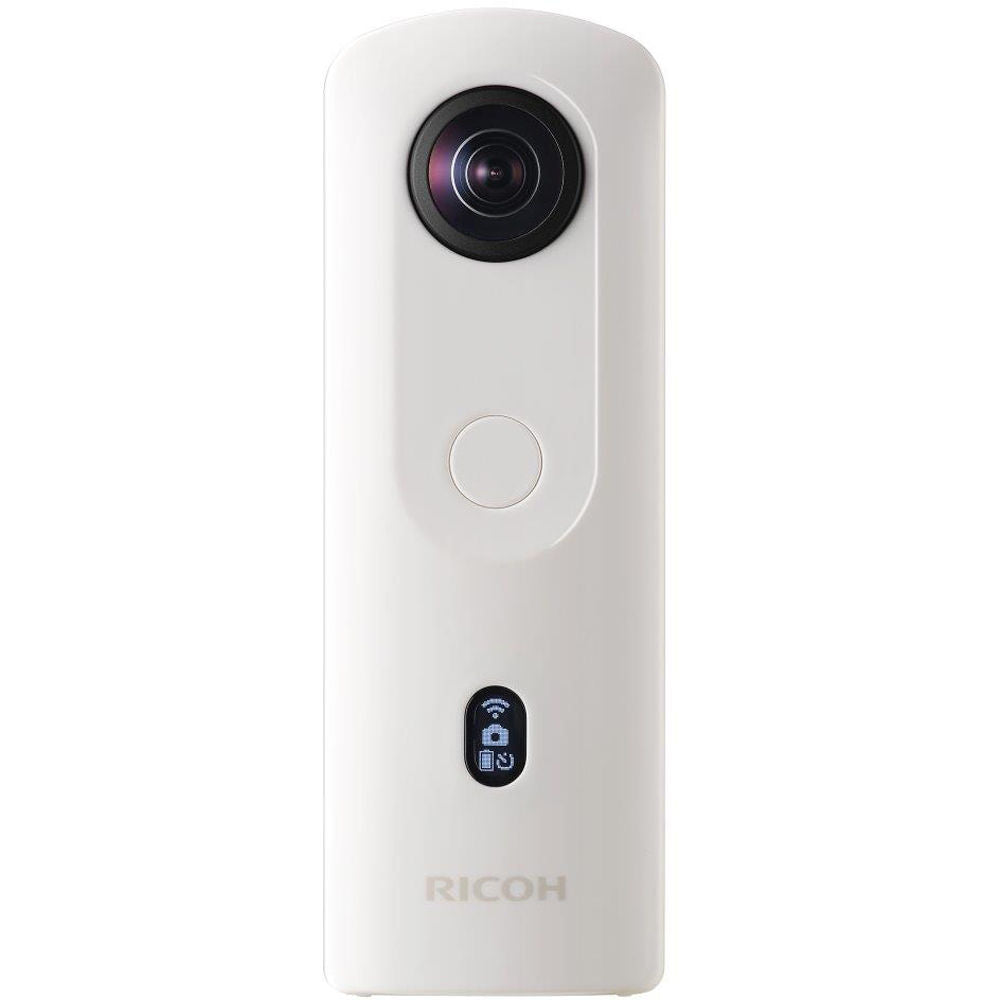

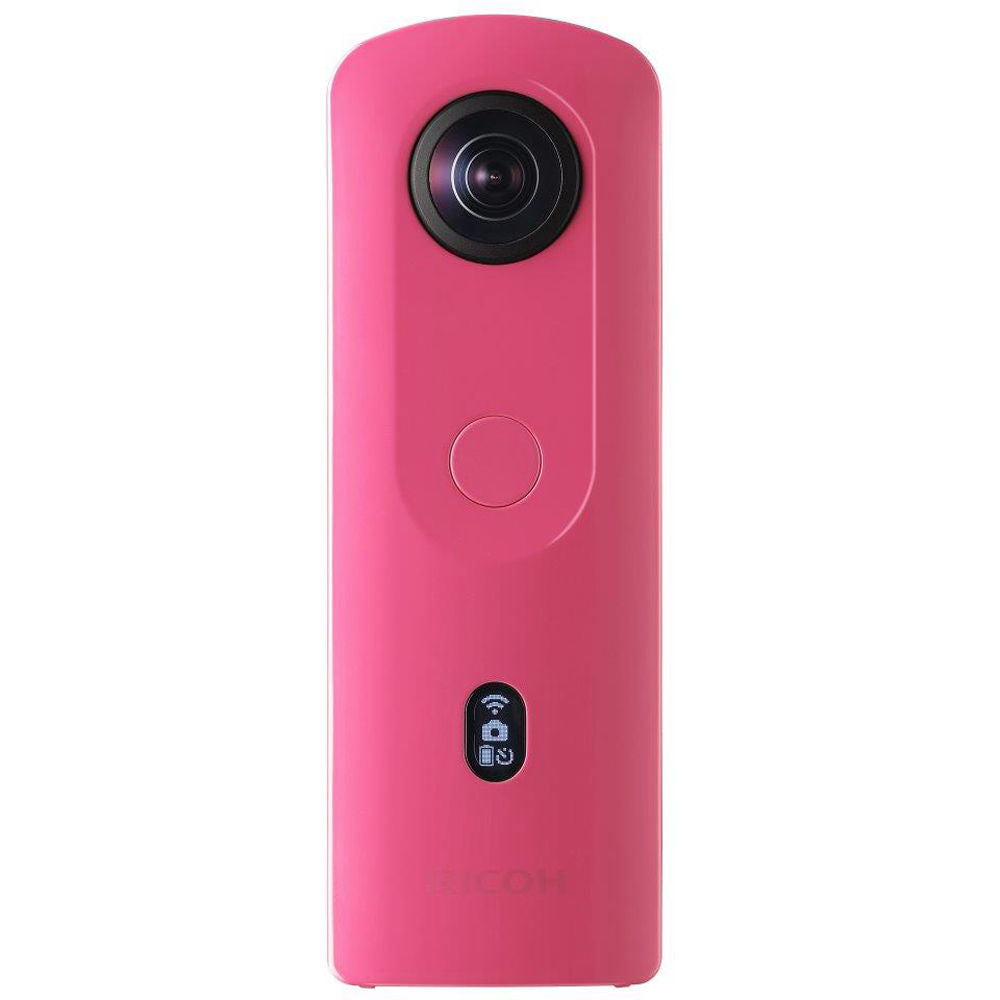

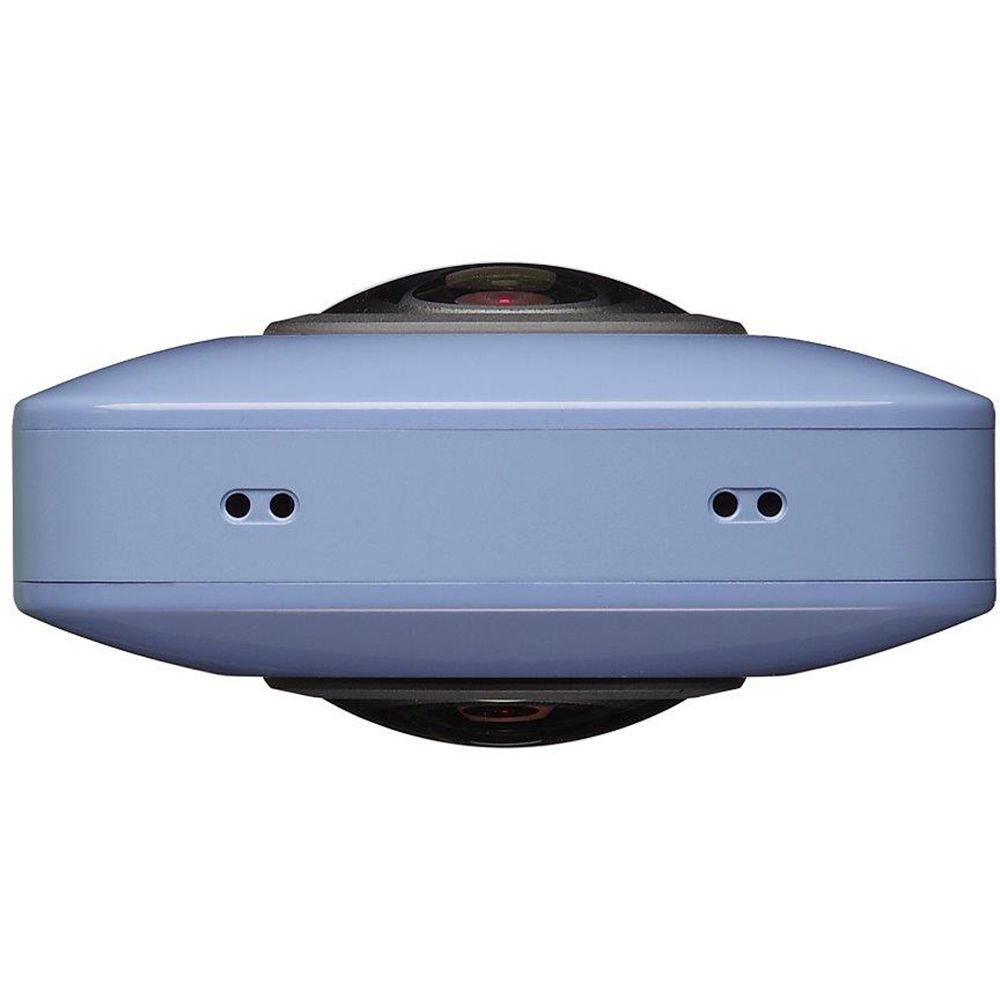

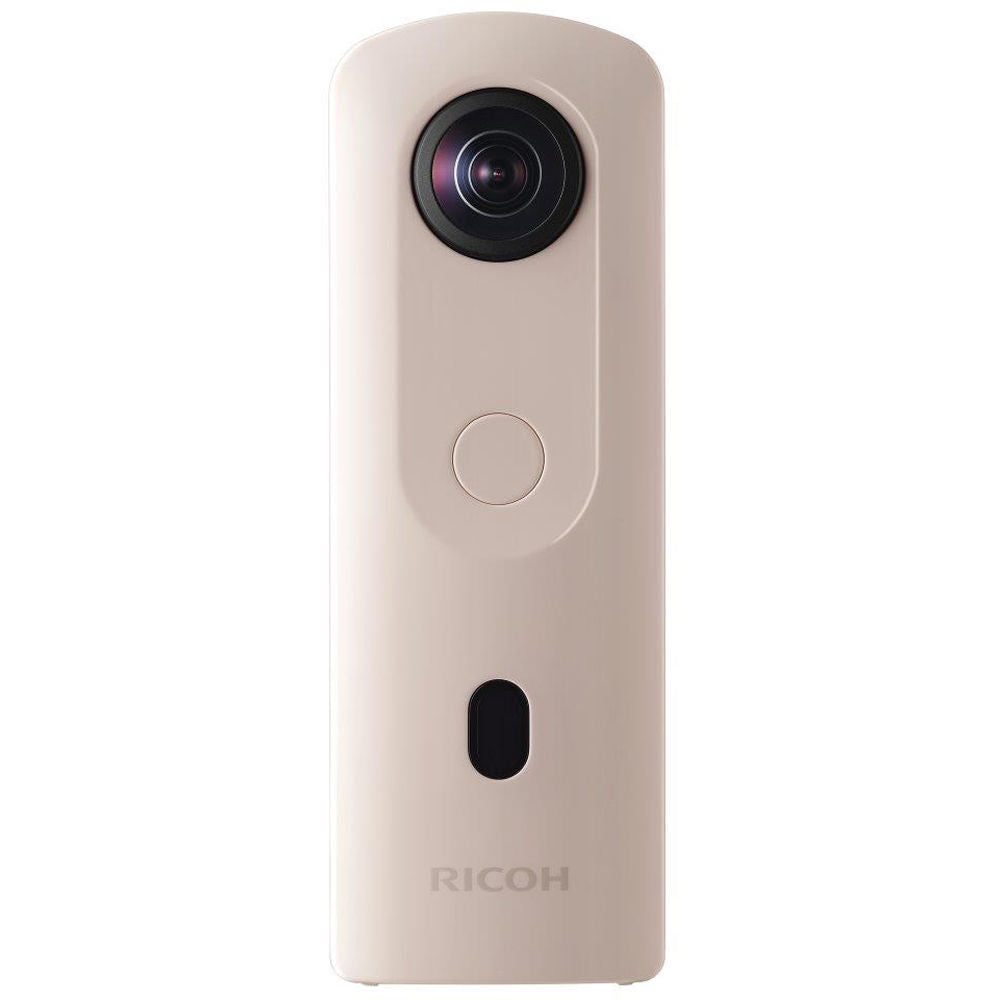

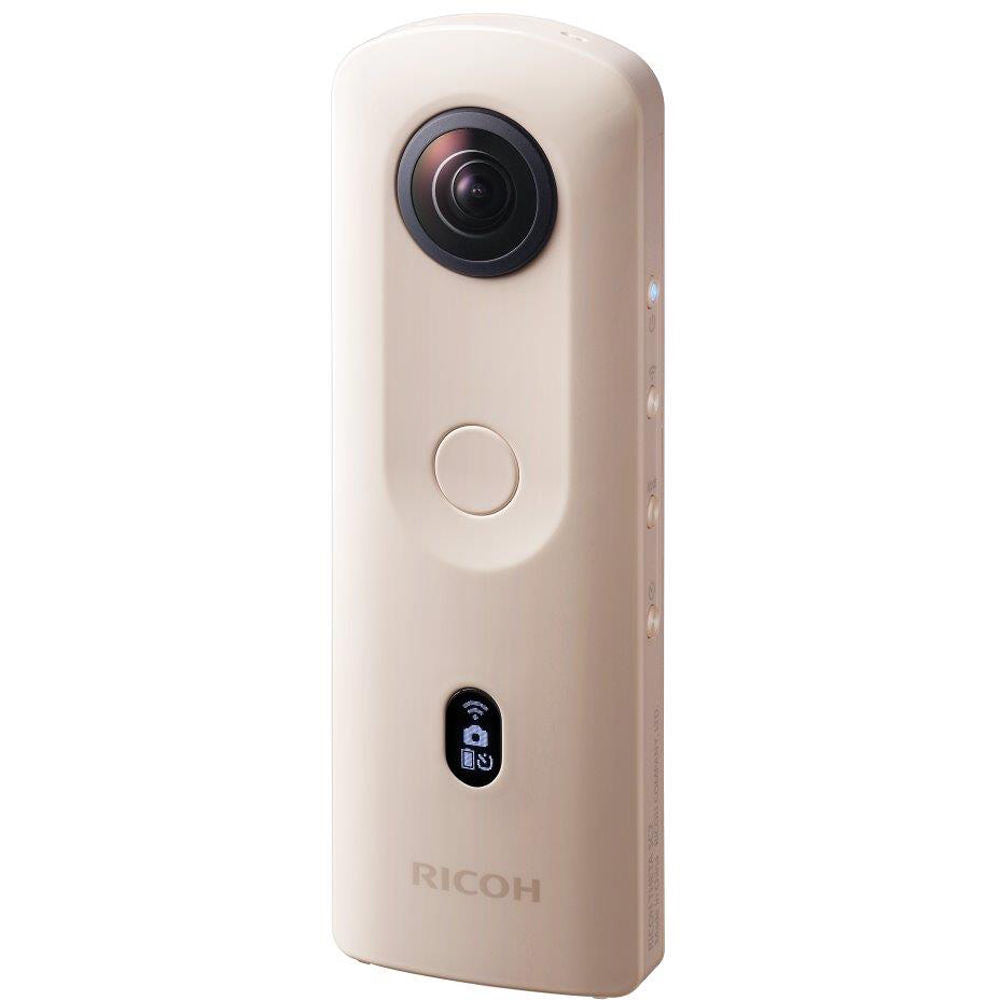

A design that fits itself to the hand. Choose from four Fresh Colors.

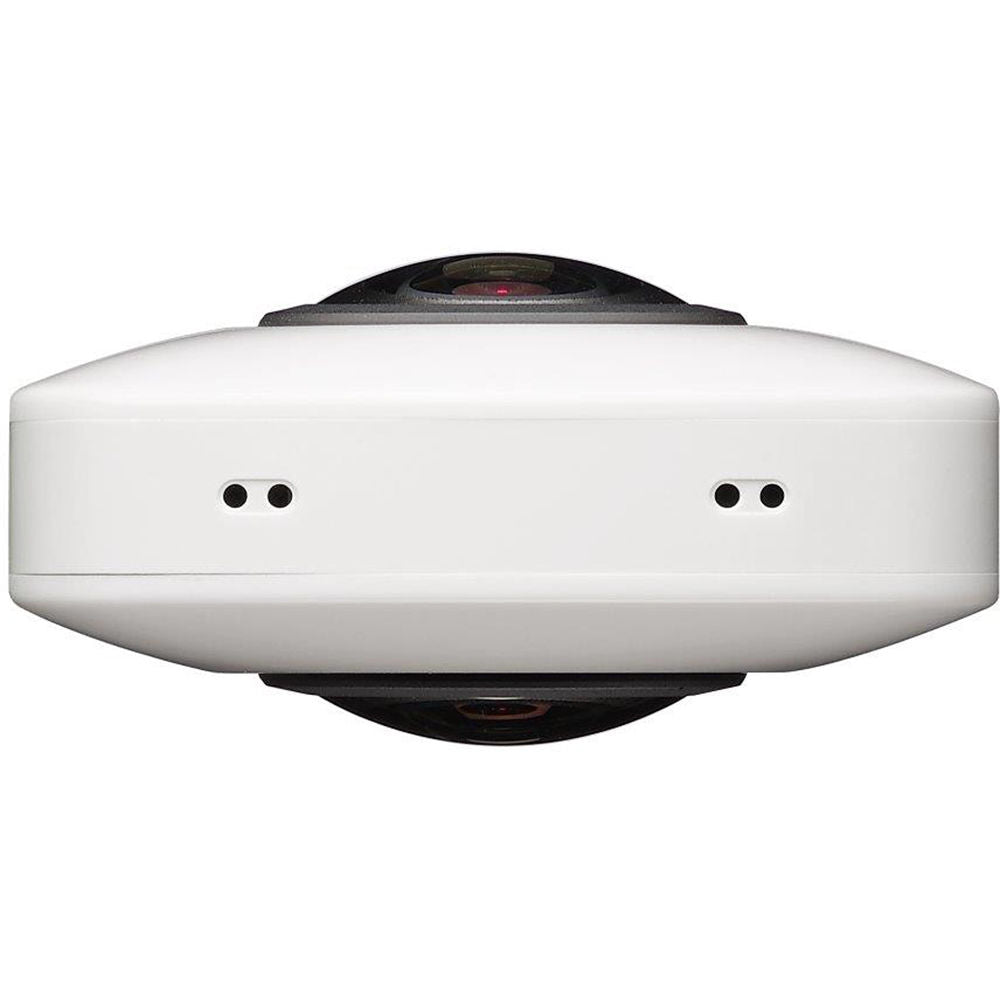

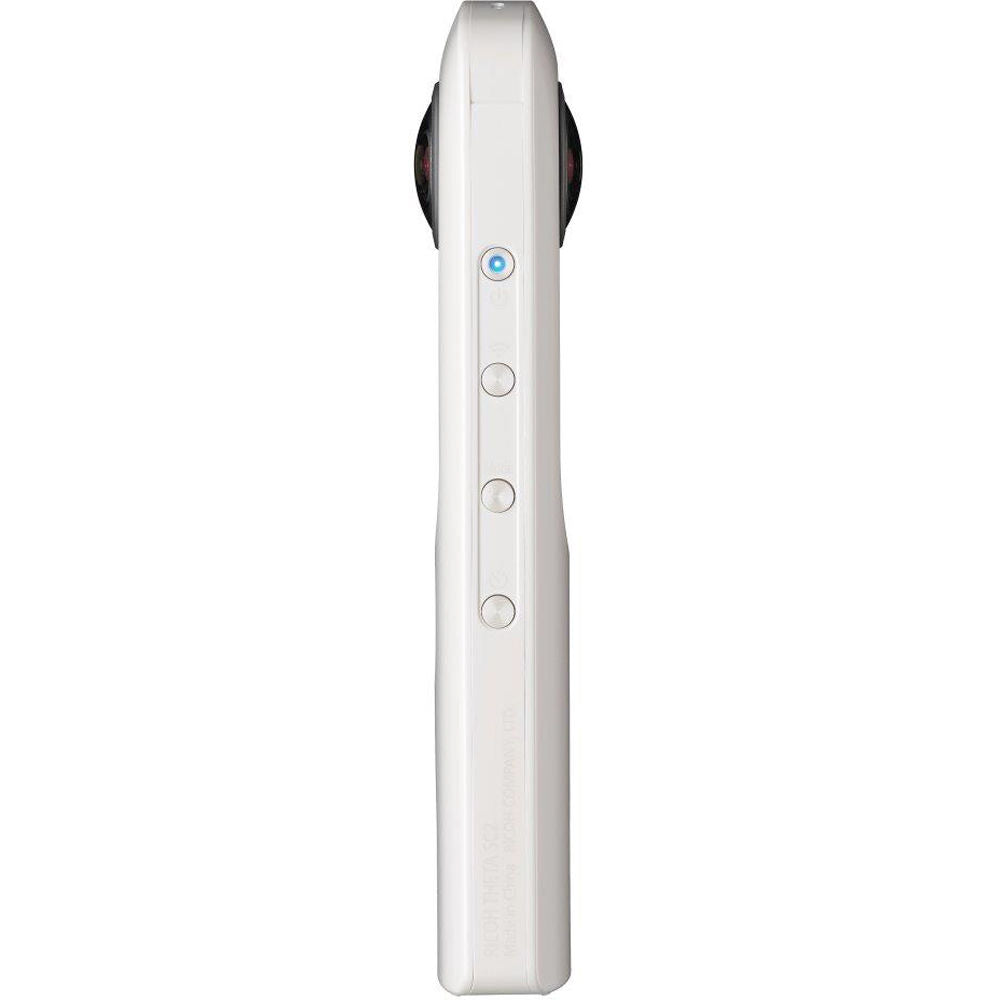

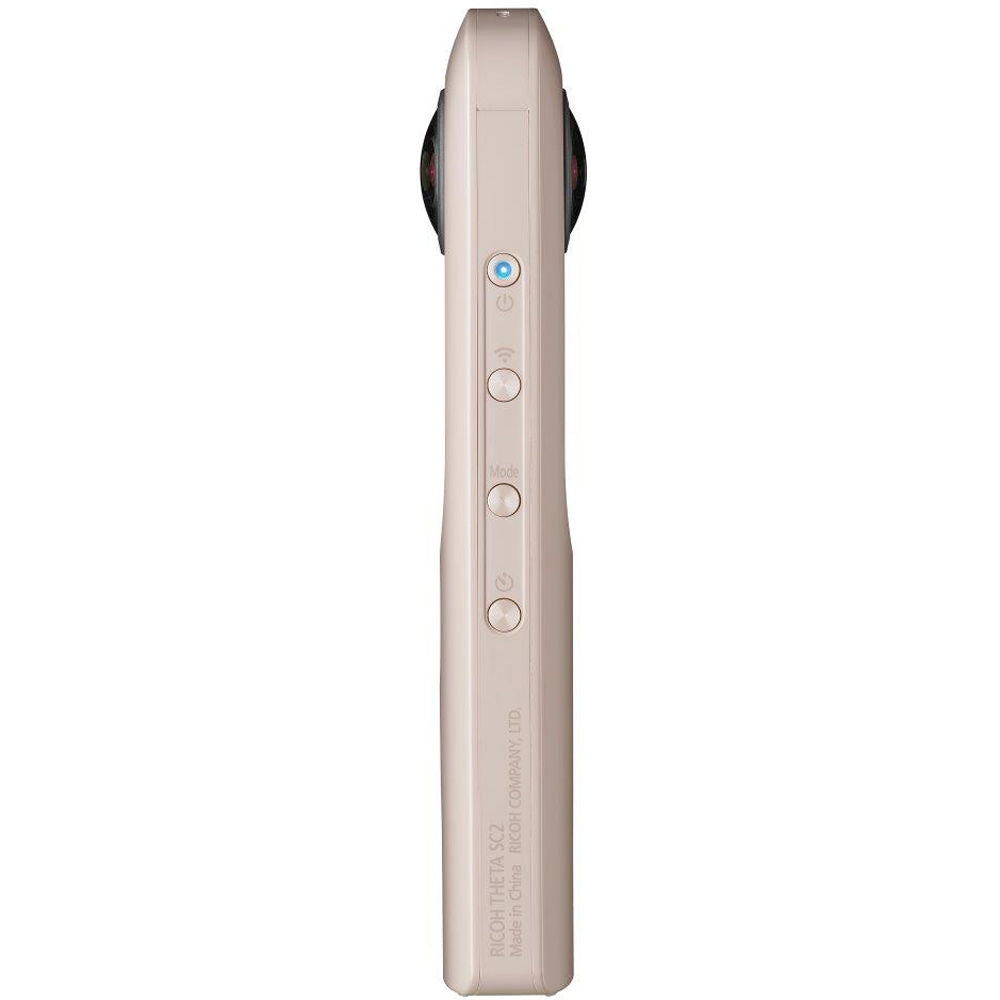

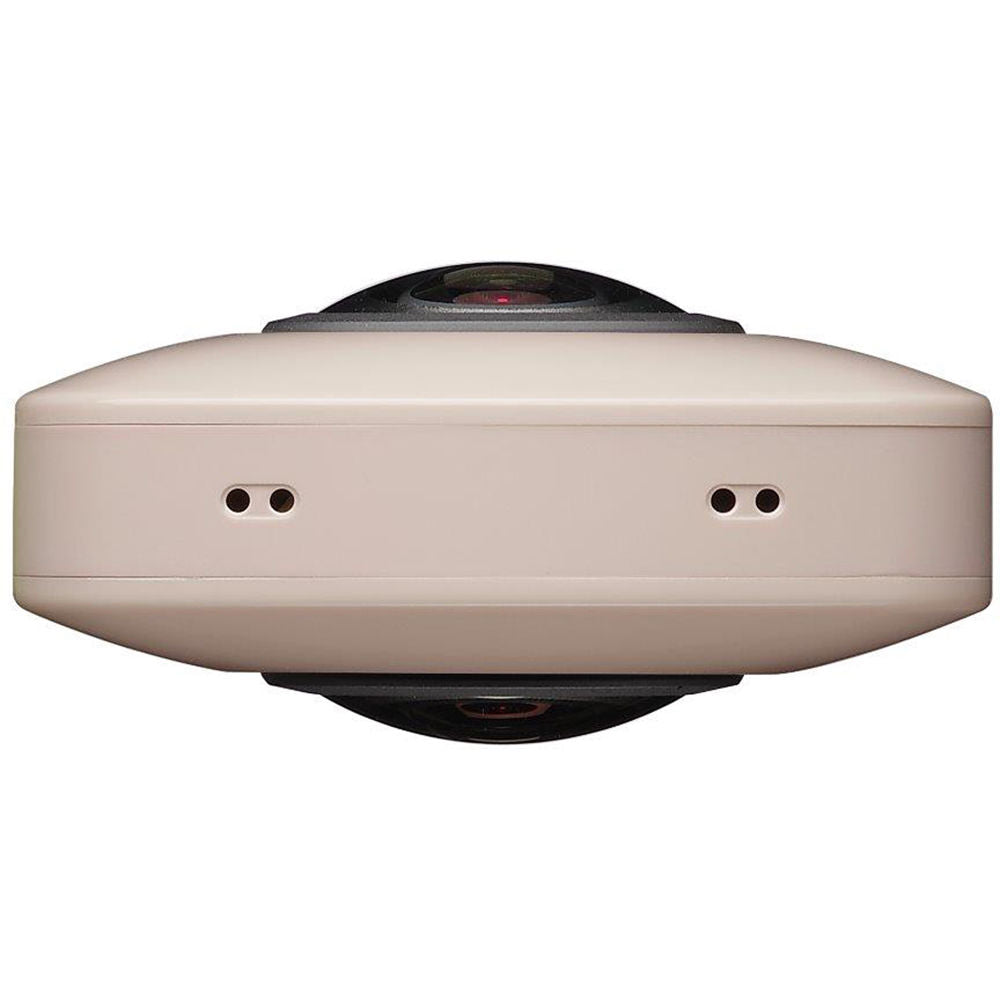

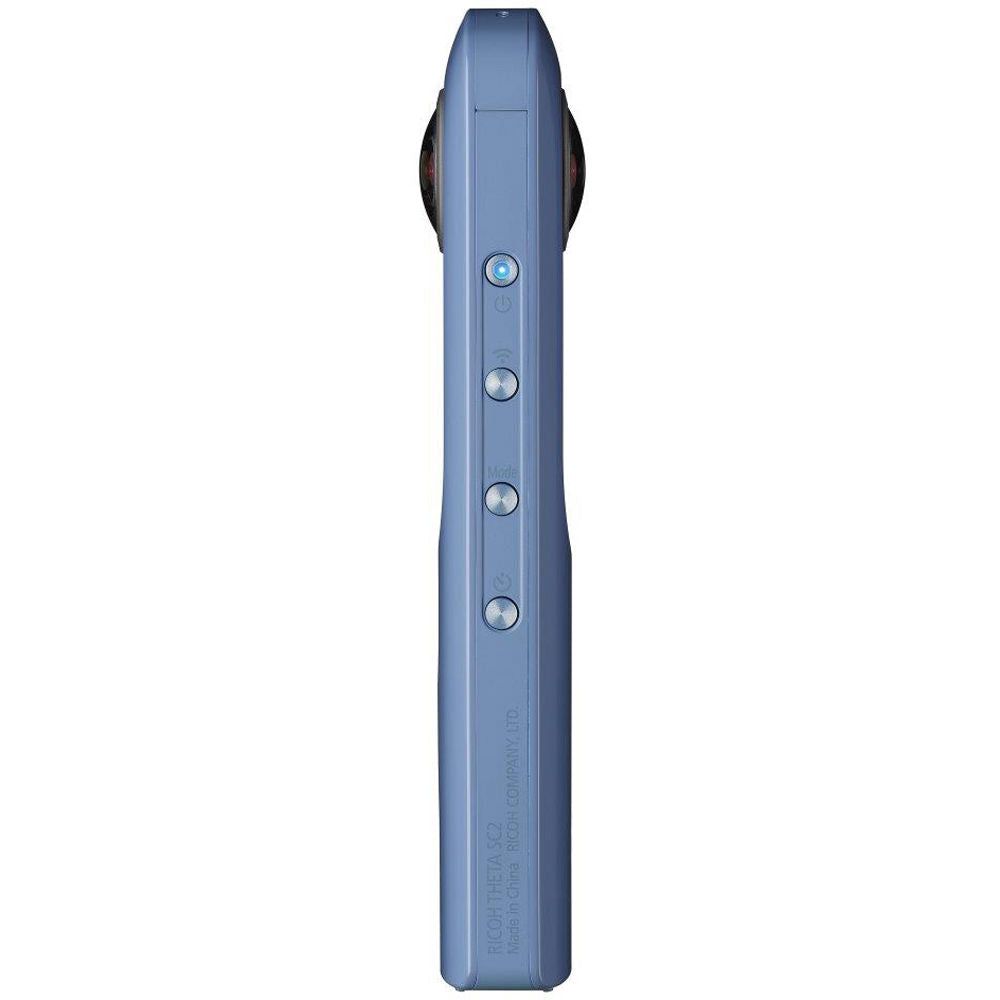

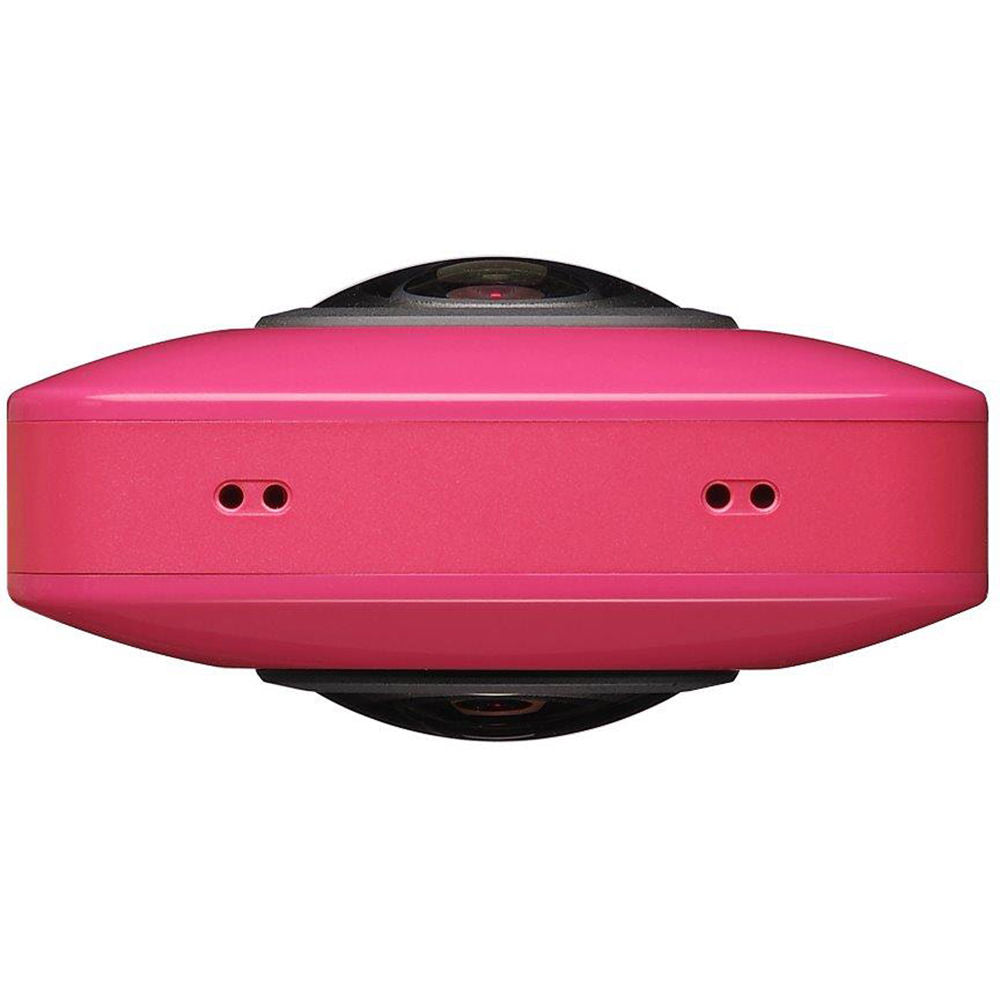

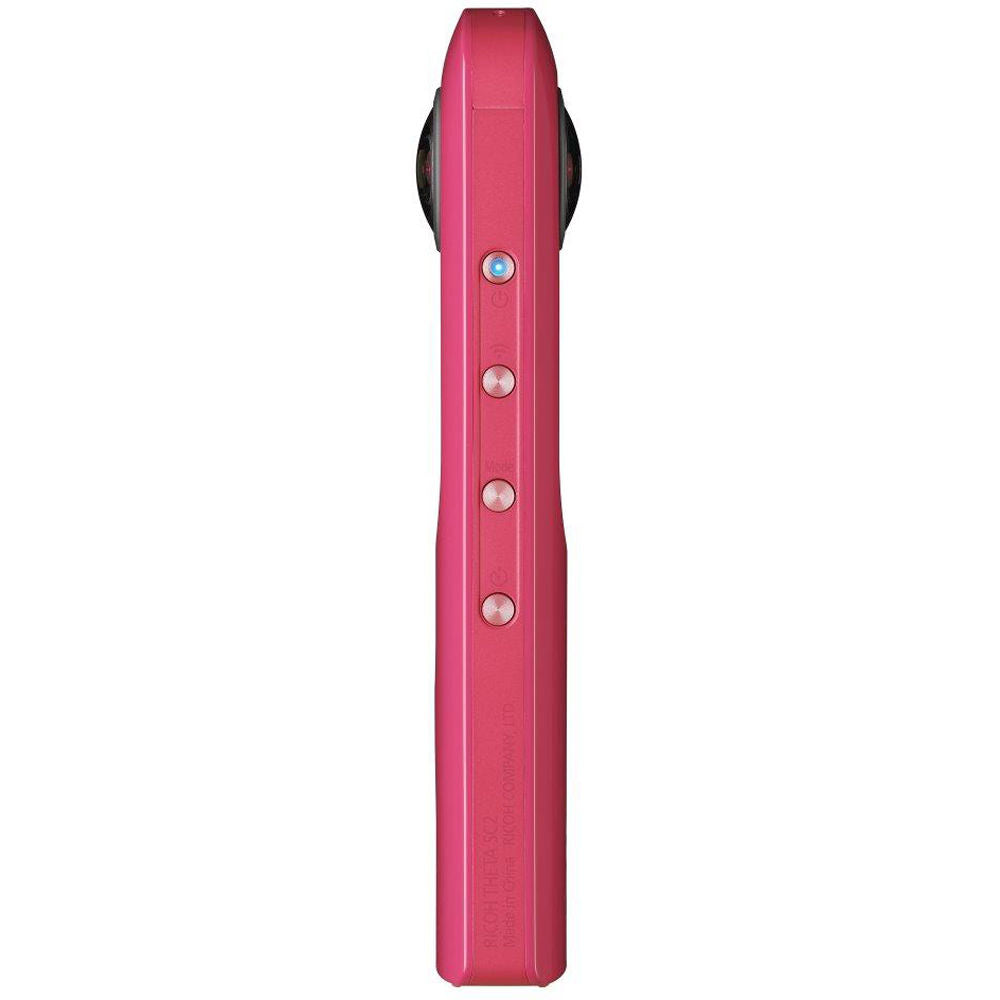

Thin and lightweight body that optimizes internal components using a proprietary folded optics system.

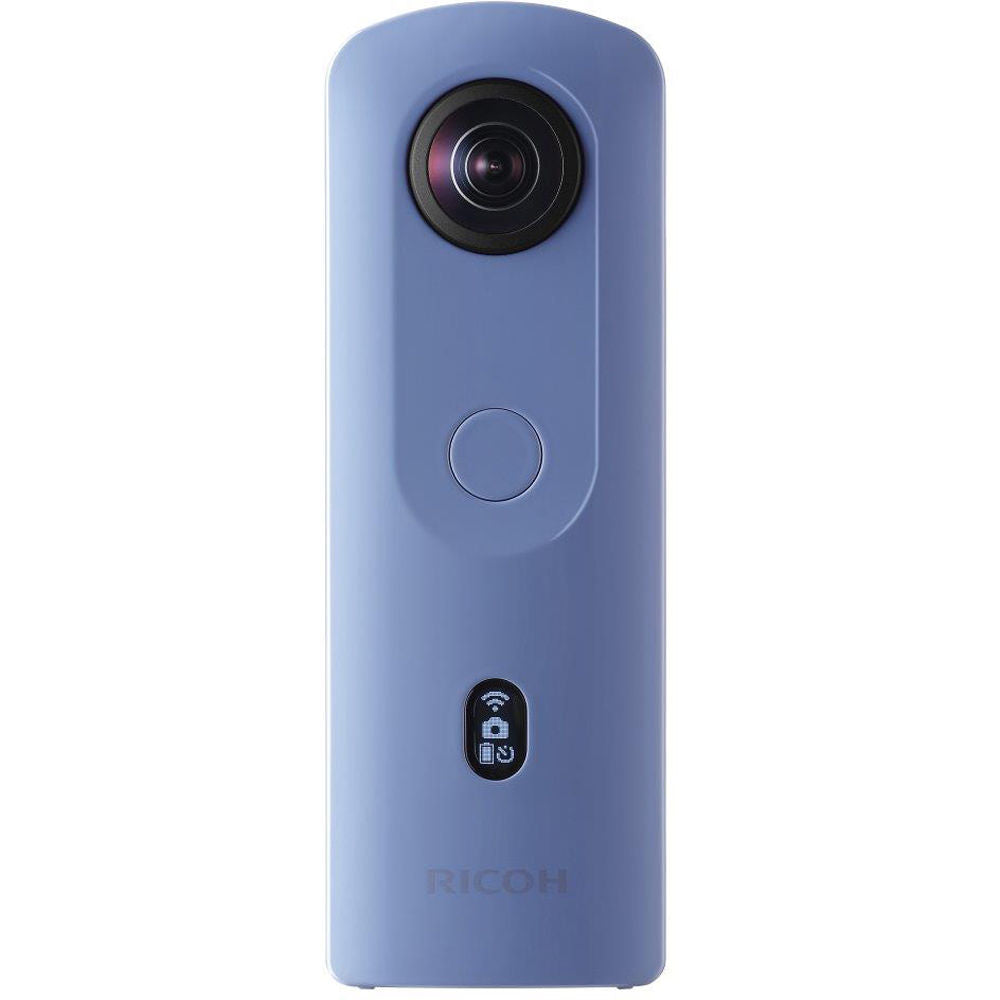

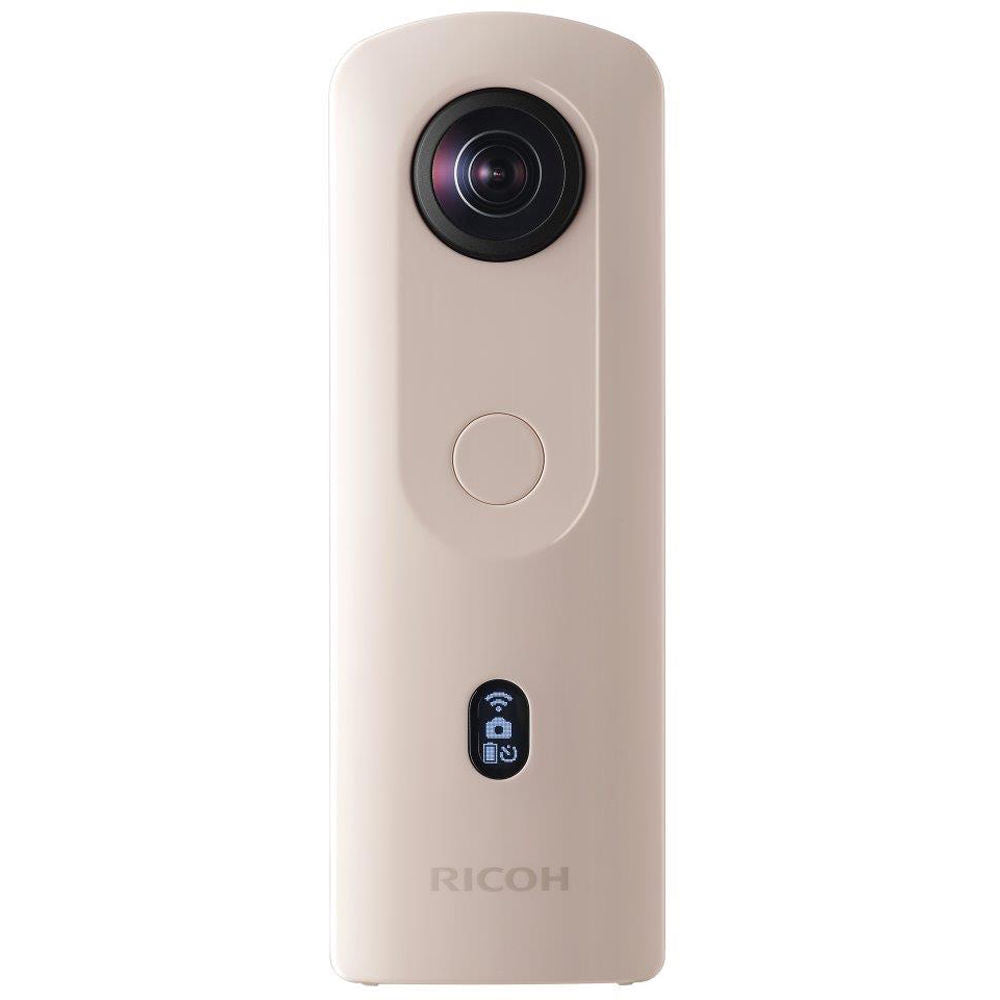

Features a display panel that allows checking of battery power remaining and shooting mode, etc.

Creativity

Create your own images using editing functions.

Records 4K video and 360° spatial audio for a more realistic VR world.

Use the dedicated editing apps “THETA+” to easily put the finishing touches to eye-catching work.

Share

Use the dedicated apps to easily share your work from anywhere with people all over the world.

Upload to the theta360.com, a website dedicated to sharing 360-degree images. Anyone can easily display their 360° images anywhere in the world.

Convenient dedicated apps are available for both PC and smartphone. Enjoy the world more with RICOH THETA.

Upload 360° photos at Facebook and LINE as it is. Easily share the 360° world with friends.

_______________________

Specification

RICOH THETA SC2

Release date

12/2019

Exterior/external dimensions

45.2 mm (W) x 130.6 mm (H) x 22.9 mm (17.9 mm *6) (D)

Weight Approx.

104 g

Still image resolution

5376×2688

Video resolution/frame rate/bit rate

4K:3840×1920/29.97fps/54Mbps(High),

   32Mbps(Low)

2K:1920×960/29.97fps/16Mbps(High),

   8Mbps(Low)

Live streaming resolution/frame rate (USB) -

Microphone

Monoaural

Internal memory/Number of photos that can be recorded, time *2

Approx. 14GB
Still image: Approx. 3,000 photos
Video (time per recording): Max. 3 minutes *3
Video (total recording time):(4K) Approx. 32 minutes,(2K)approx. 115 minutes

Compatible accessories

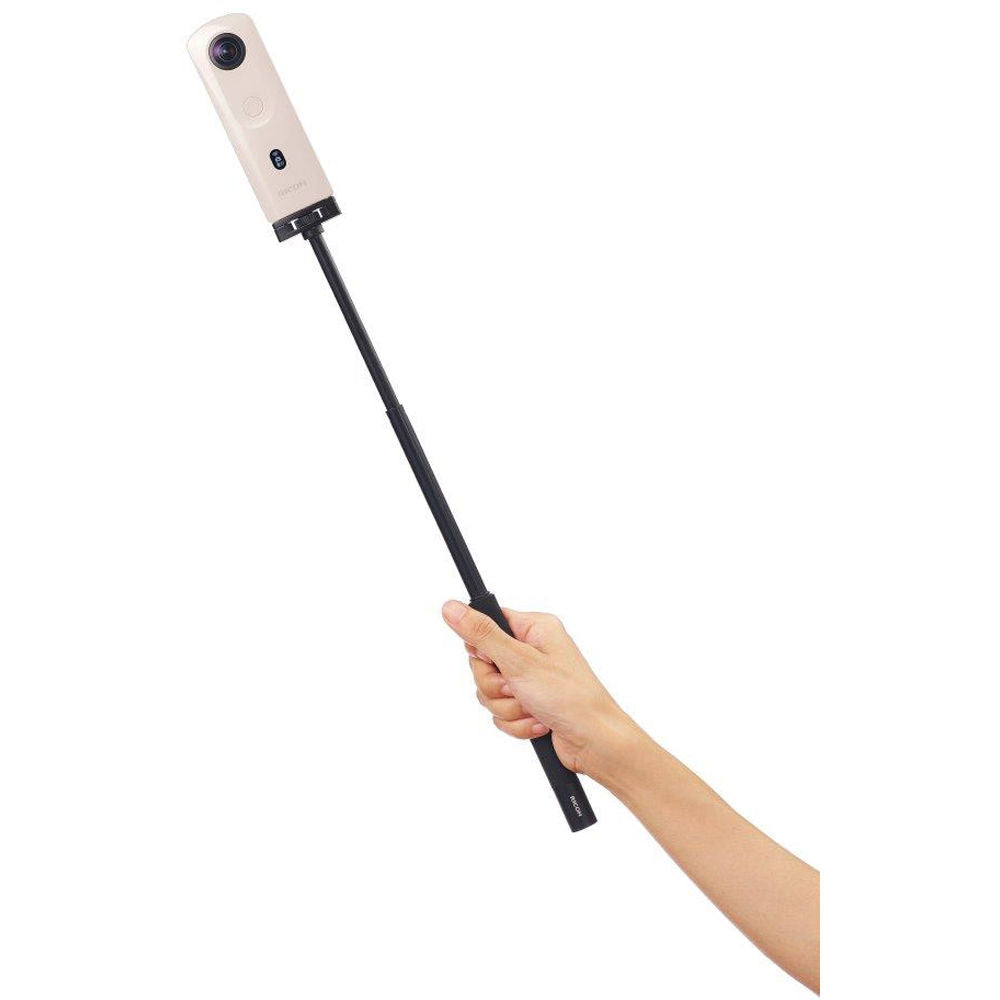

Tripod/stand (includes tripod mount hole),Waterproof case (TW-1)

Bundled items

Soft case and USB cable

Object distance

Approx. 10cm - ∞ (from front of lens)

Shooting mode

Still image: Auto, shutter priority, ISO priority, manual*2
Video: Auto

Exposure control mode

Program AE, Shutter speed priority AE, ISO sensitivity AE, Manual exposure

Exposure compensation

Still image: Manual compensation (-2.0 - +2.0EV, 1/3EV step) *2

ISO sensitivity (standard output sensitivity)

Still image: (Automatic) ISO64 - 1600 The Upper Limit settinngs,
(ISO priority mode) ISO64 - 3200 *1
(Manual mode)ISO64 - 3200 *2
Video: (Automatic) ISO64 - 6400 The Upper Limit settinngs,

White balance mode

Still images/video: Auto, Outdoor, Shade, Cloudy, Incandescent light 1, Incandescent light 2, Daylight color fluorescent light, Natural white fluorescent light, White fluorescent light, Light bulb color fluorescent light, Underwater, Color temperature (2500K to 10000K) *2

Shutter speed

Still image: (Automatic) 1/25000 - 1/8 seconds,
(Shutter priority mode) 1/25000 - 1/8 seconds *2
(Manual mode) 1/25000 - 60 seconds *1
Video: 1/25000 - 1/30 seconds

Shooting functions

Still images: Noise reduction, DR compensation, HDR rendering, interval shooting, multi-bracket shooting, self-timer (2 seconds, 5 seconds, 10 seconds), My Settings, Videos: Self-timer (2.5 seconds, 10 seconds), My Settings, Preset: Face, Night View, Lens-by-Lens Exposure

Power source

Lithium ion battery (built in) *4

Battery life

Still image: Approx. 260 photos *5
Video: Approx. 70 minutes *5

Compression method

Still image: JPEG (Exif Ver2.3)
Video: MP4 (Video: MPEG-4 AVC/H.264), Audio: AAC-LC (mono)

External interface

Micro-USB: USB 2.0, microphone terminal

Remote release -

Lens configuration

 7 elements in 6 groups

Lens_F value

F2.0

Image sensor_size

1/2.3 CMOS (x2)

Effective pixels

Approx. 12 megapixels (x2)

Output pixels

Approx. 14 megapixels

Wireless compliance standard

IEEE802.11 b/g/n (2.4GHz only)
Bluetooth 4.2

Wireless supported channels

2400MHz ～ 2483.5MHz

Wireless communication protocol (WLAN)

HTTP (Open Spherical Camera API compatible)

Wireless communication protocol (Bluetooth)

GATT (Generic Attribute Profile)

Usage temperature range

0°C - 40°C

Usage humidity range

90% or less

Storage temperature range

-20°C - 60°C

*1 The number of photos and time are guides only. The actual number differs according to the photography conditions.
*2 A smartphone is required to change modes or configure manual settings.
*3 Automatic shut down if the internal temperature increases.
*4 Charge the battery by connecting it to a PC using the supplied USB cable.
*5 The number of photos that can be taken is a guide based on RICOH's measurement method . The actual number differs according to usage conditions.
*6 Excluding lens section.

■Specifications and the design may change without prior notice.
